This numbered Frameworks Page covers a single Visual Knowledge Model (VKM). Refer to Tags at the bottom for content classification and source publication if any. The page may be updated to connect with newer Frameworks Pages. The number is for pages, not for content.
Published on December 1, 2013 | Last Updated on September 20, 2025
Click of a larger version | older versions: v2.0 – 2010, v1.2 – 2008 and v1.1 – 2007

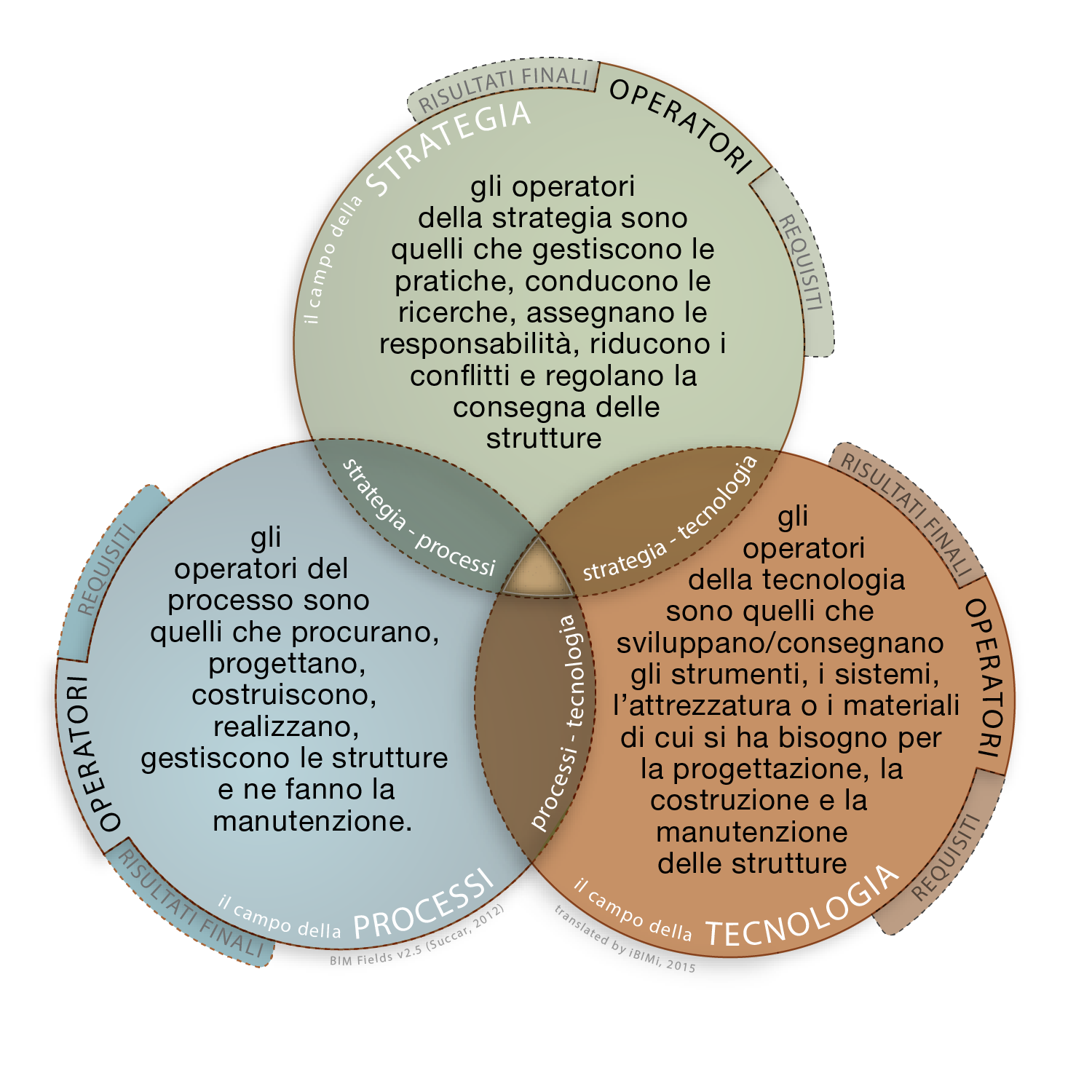

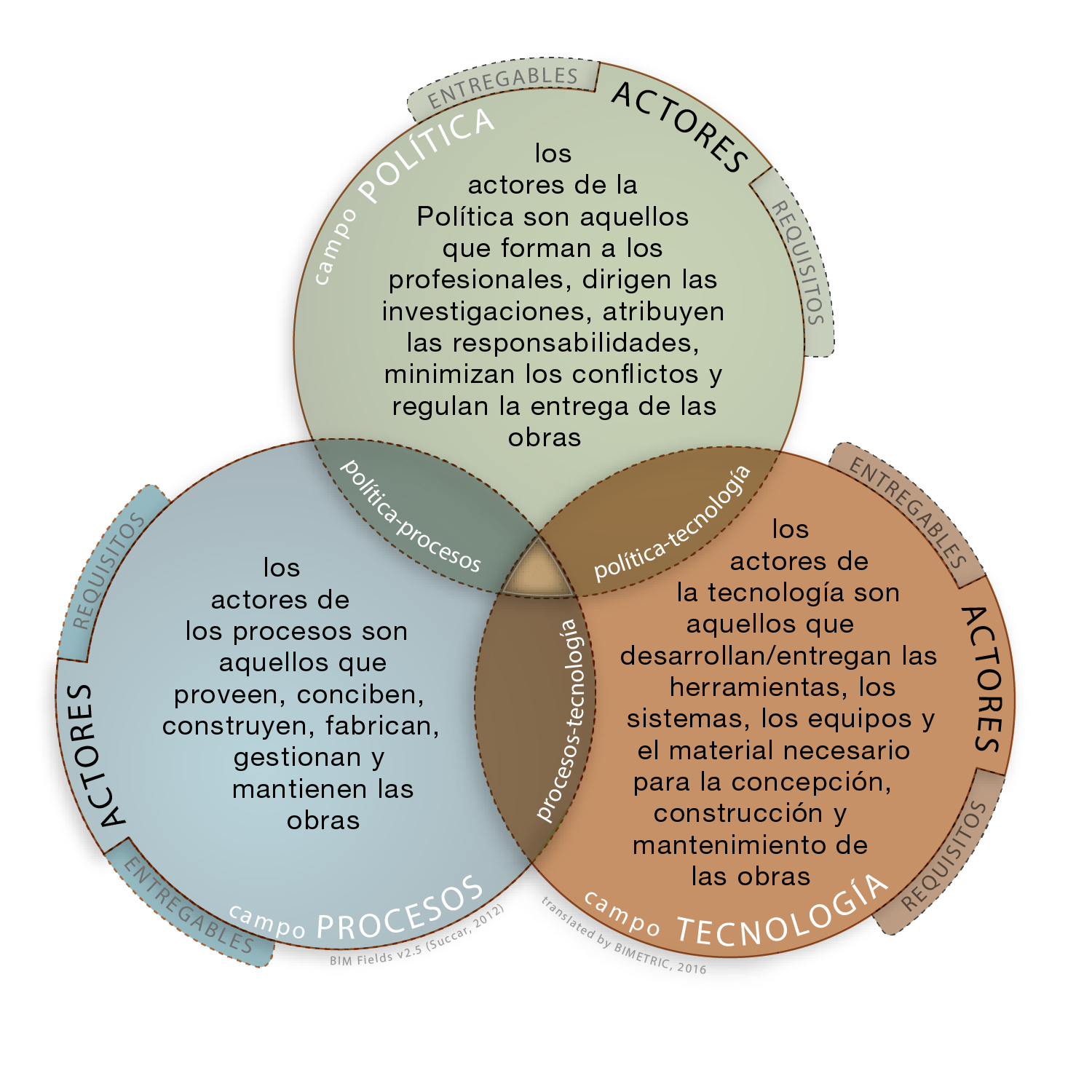

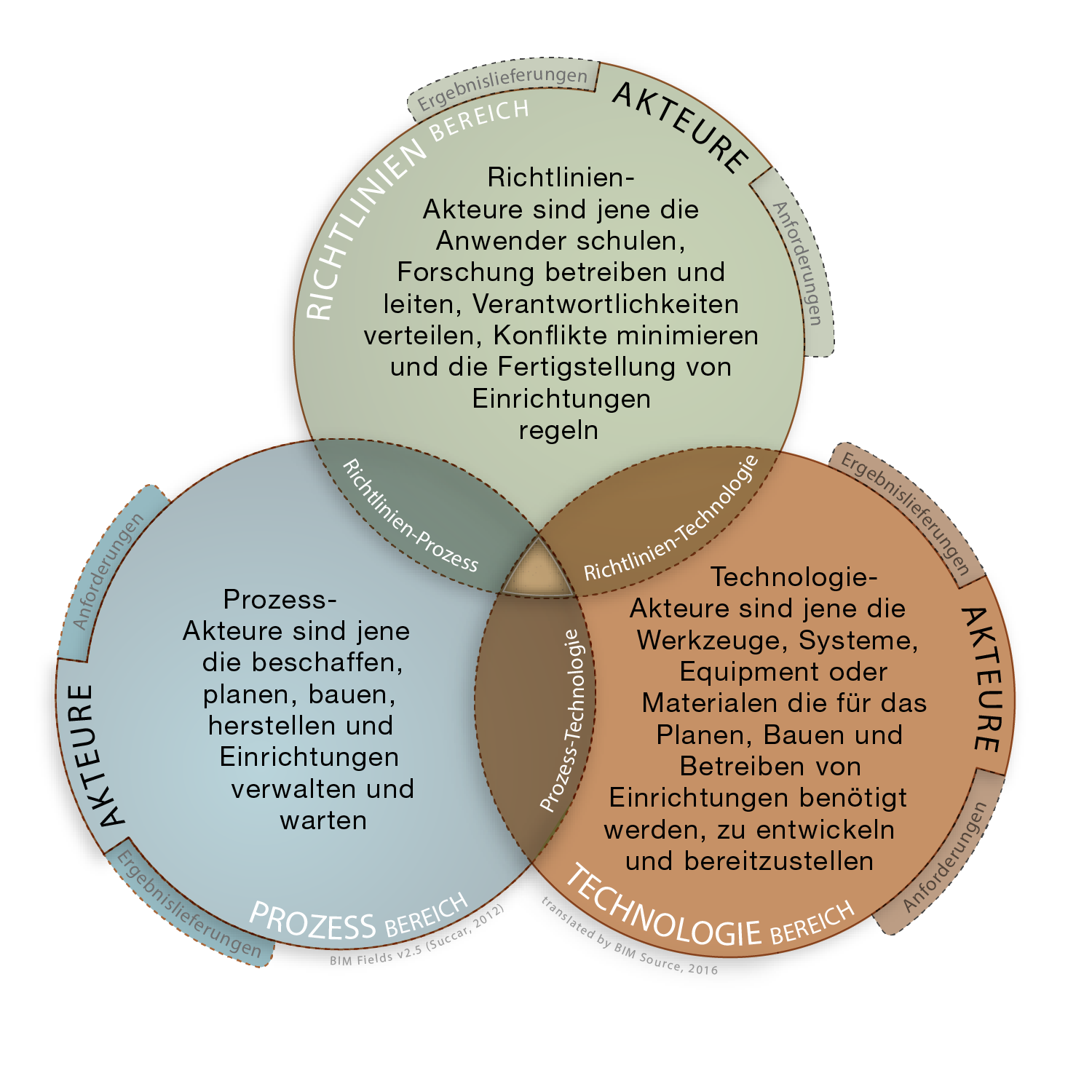

Also available in Spanish, German, Italian and French

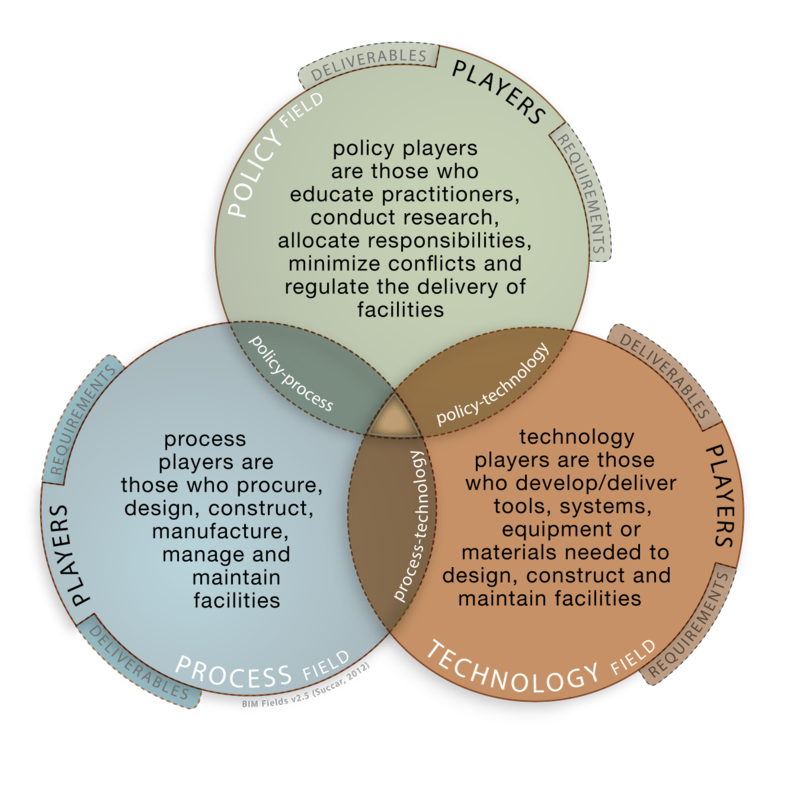

This conceptual model represents BIM Fields, the first dimension of the Tri-axial Model. BIM Fields refer to all topics, activities, and actors across the BIM domain. The Venn diagram (three overlapping circles) identifies Field Types (Technology, Process and Policy), Field Components (Players, Deliverables and Requirements), Field interactions and Field overlaps.

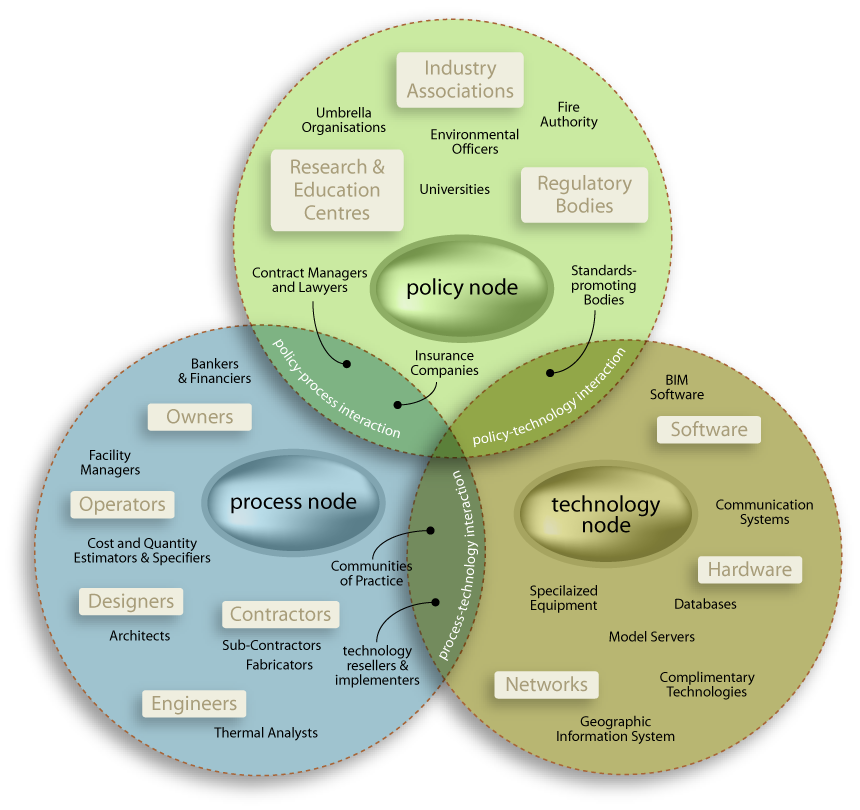

The model was first referred to as ‘three interlocking knowledge nodes’ in Paper A1 “A Proposed Framework”. The term ‘nodes’ was later replaced with ‘fields’ to match the notion of ‘players’.
Below is a short video briefly explaining the above on the dedicated BIM Framework YouTube channel:
Cite as: BIMe Initiative (2025), '2. BIM Fields', https://bimexcellence.org/frameworks/bim-fields/. First published 1 December 2013. Viewed 27 September 2025
